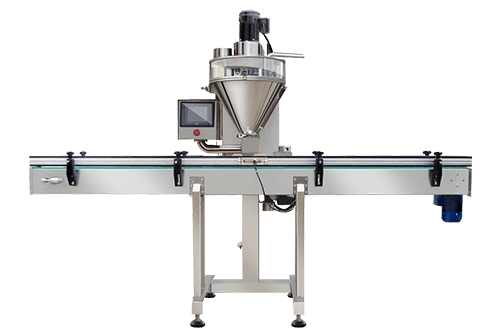

2A/B automatic Filling Machine is a single head auger filler that is complete, economical solution to your filling production line requirements. It consists of the industry-proven All-Fill filling head, an independently motorized chain conveyor mounted on a sturdy, stable frame base, and all necessary accessories to reliably move and position containers for filling, dispense the required amount of product, then quickly move the filled containers away to other equipment in your line (e.g., cappers, labelers, etc.). PLC control system provides precise selection and adjustment of fill amounts and machine functioning.
Specifications
Model | 2A | 2B |
Measurement Method | Screw quantitative filling type | |
Tank Specifications | Tank specifications:20~100mm | Tank specifications:70~130mm |
height:50~200mm | height:50~350mm | |
Filling Range | 10~500g | 50~5000g |
Accuracy | ±0.3%~1% | |
Speed | 20~60tank/min | |
Tank Volume | 26L | 50L |
Power Supply | 380V 50~60Hz | |
Total Power | 1KW | 1.8KW |
Work Height | 850±50mm | |
Overall Size | 2440×680×1770 | 2500×850×2050 |
Total Weight | 200kg | 320kg |
Common Applications

Breadcrumb

Brown-Sugar

Cake-Mix

Cat Litter

Cement-Powder

Chia-Seeds

Cocoa-Powder

Cosmetics Powder

Curry-Powder

Detergent-Powder

Fennel Grass-Seeds

Food Powders

Grains

Ground Spices

Infant Formula

Jimmies Sprinkles

Lentils-Seeds

Matcha-Powder

Pancake-Mixpng

PepperGround Pepper

Plant Foods

Plastic Granules

Protein-Powder

Rice-Powder

Salt-Products

Seeds

small Pet Food

Sugar

Toner Powder

Turmeric-Spices

wholeGround-coffee

Milk Powder
